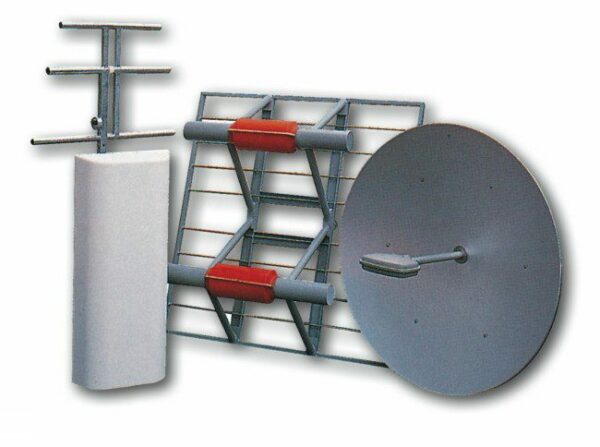

Systèmes d’antennes d’émission FM/TV

Frequency range 470 – 860 MHz
Polarization Horizontal or vertical
Connector N ; DIN 7/16 ; EIA 7/8”
Max power N = 500W; 7/16 = 1KW; 7/8” = 1,2KW
Gain ( reference to a half wave dipole) 11dB(500MHz);
12dB(650MHz);
13dB(850MHz)
Wind load (150Km/h) 75 Kg front ; 25 Kg side
Lightning protection All parts to ground
Construction material Stainless steel, brass, copper, fiberglass
Weight 18 Kg
Dimensions 1050 x 450 x 210 mm

Frequency range 170 – 230 MHz
Polarization Horizontal or vertical
Connector DIN 7/16 ; EIA 7/8”
Max power 1,5KW
Gain ( reference to a half wave dipole) 8dB
Wind load (150Km/h) 192 Kg front
Lightning protection All parts to ground
Construction material Aluminium, brass, ptfe, fiberglass
Weight 28 Kg
Dimensions 1360 x 1350 x 440 mm

Diameter 2 GHZ gain 5 GHz gain 7 GHz gain 10 GHz gain 14 GHz gain
60cm 18dB 27dB 31dB 34dB 38dB
1.0m 22dB 31dB 34dB 37dB 41dB
1.2m 24dB 32dB 36dB 39dB 43dB
1.5m 26dB 34dB 38dB 41dB 44dB
1.8m 27dB 36dB 40dB 43dB 45dB
2.0m 28 dB 37dB 42dB 44dB 46dB
