Systèmes d’antennes

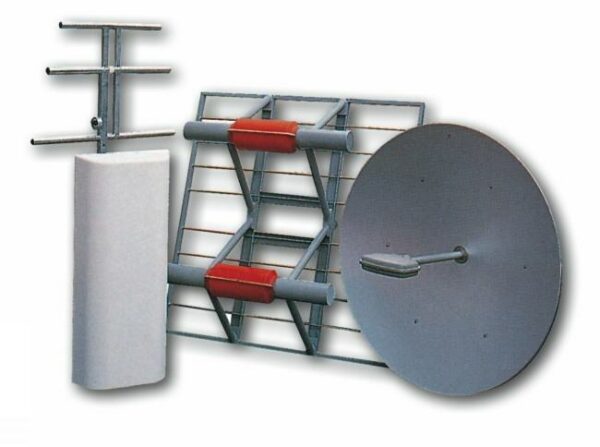

Eletec Broadcast fournit à ses clients des solutions personnalisées, étude et optimisation informatisées de système d’antennes d’émission UHF, la VHF bIII et bI.
Des systèmes d’antennes complets incluent : les antennes de panneau, fixations, coupleurs, câbles (bretelles).
Des solutions de systèmes de rayonnement spéciales sont étudiées sur demande.
|
MODEL
|
DESCRIPTION
|
CONNECTOR
|
|
P/U
|
UHF Panel Antenna
|
N female
|
|
P/U7
|
UHF Panel Antenna
|
DIN 7-16 female
|
|
P/U8
|
UHF Panel Antenna
|
EIA 7/8’’
|
|
PTS/U
|
UHF TURNSTYLE 4 DIPOLE Antenna
|
N female
|
|
PTS/U7
|
UHF TURNSTYLE 4 DIPOLE Antenna
|
DIN 7-16 female
|
|
PSD/3
|
VHF biii Panel Antenna single dipole
|
DIN 7-16 female
|
|
PSD/78
|
VHF biii Panel Antenna single dipole
|
EIA 7/8’’
|
|
PDD/3
|
VHF biii panel Antenna double dipole
|
EIA 7/8’’
|
|
P/B1
|
VHF bI panel Antenna
|
EIA 7/8’’
|
|
P3Y/1
|
vhf bi 3 elements yagi Antenna
|
N female
|
|
P3Y/17
|
vhf bi 3 elements yagi Antenna
|
DIN 7-16 female
|
|
P3Y/78
|
vhf bi 3 elements yagi Antenna
|
EIA 7/8’’
|
|
Please add:
– H for horizontal polarization
– V for vertical polarization
Please contact ELETEC Broadcast sales office for other available kind
|
||
RADIATING SYSTEMS
(specification subject to change without any notice)
|
UHF Panel Antenna
|
|
|
Frequency range
|
470 – 860 MHz
|
|
Average Gain
|
11 dBd
|
|
VSWR
|
≤ 1.12:1
|
|
Polarization
|
Horizontal or vertical
|
|
Lightning protection
|
All metal parts DC grounded
|
|
Construction material
|
Reflector: hot dip galvanized steel
Dipole: stainless steel
Radome: fiberglass
|
|
Connector
|
N female (400 W ATV) – P/U
DIN 7-16 female (1500 W ATV)– P/U7
EIA 7/8” (2500 W ATV)– P/U8
|
|
UHF TURNSTYLE 4 DIPOLE Antenna
|
|
|
Frequency range
|
470 – 860 MHz
|
|
Average Gain
|
5 dBd
|
|
VSWR
|
≤ 1.12:1
|
|
Polarization
|
Horizontal
|
|
Lightning protection
|
All metal parts DC grounded
|
|
Construction material
|
Dipole: MIL-C-5541
Radome: fiberglass
|
|
Radiation
|
Omnidirectional
|
|
Mounting
|
Directly on the top of tower/mast
(diam 60-114 mm) safety hoist ring
|
|
Connector
|
N female (300 W ATV) – P/TS-U
DIN 7-16 female (1200 W ATV) -P/TS-U7
|
|
VHF biii Panel Antenna single dipole
|
|
|
Frequency range
|
170 – 240 MHz
|
|
Average Gain
|
8 dBd
|
|
VSWR
|
≤ 1.23:1
|
|
Polarization
|
Horizontal or vertical
|
|
Lightning protection
|
All metal parts DC grounded
|
|
Construction material
|
Reflector: hot dip galvanized steel
Dipole: stainless steel
Radome: fiberglass
|
|
Connector
|
DIN 7-16 female (1000 W ATV) – p-sd/3
EIA 7/8” (3000 W ATV) – p-sd/38
|
|
VHF biii Panel Antenna double dipole
|
|
|
Frequency range
|
170 – 240 MHz
|
|
Average Gain
|
11 dBd
|
|
VSWR
|
≤ 1.1:1
|
|
Polarization
|
Horizontal
|
|
Lightning protection
|
All metal parts DC grounded
|
|
Construction material
|
Reflector: hot dip galvanized steel
Dipole: stainless steel
Radome: fiberglass
|
|
Connector
|
EIA 7/8” (3000 W ATV) – P-DD/3
|
|
VHF bI panel Antenna
|
|
|
Frequency range
|
47 – 88 MHz
|
|
Average Gain
|
6.5 dBd
|
|
VSWR
|
≤ 1.15:1
|
|
Polarization
|
Horizontal
|
|
Lightning protection
|
All metal parts DC grounded
|
|
Construction material
|
Reflector: hot dip galvanized steel
Dipole: stainless steel
Radome: fiberglass
|
|
Connector
|
EIA 7/8” (2500 W ATV) – P/1
|
|
vhf bi 3 elements yagi Antenna
|
|
|
Frequency range
|
47 – 88 MHz
|
|
Bandwidth
|
3 MHz
|
|
Average Gain
|
7 dBd
|
|
VSWR
|
≤ 1.2:1
|
|
Polarization
|
Horizontal or vertical
|
|
Lightning protection
|
All metal parts DC grounded
|
|
Construction material
|
Mounting brackets and bolts: galvanized steel
Elements: stainless steel
|
|
Connector
|
N female (500 W ATV) – P-3Y/1
DIN 7-16 female (1400 W ATV) – P-3Y/17
EIA 7/8” (2000 W ATV) – P-3Y/18
|
