Emetteur FM Eletec 600w Digital EL600D
Emetteur FM 600 W
Description

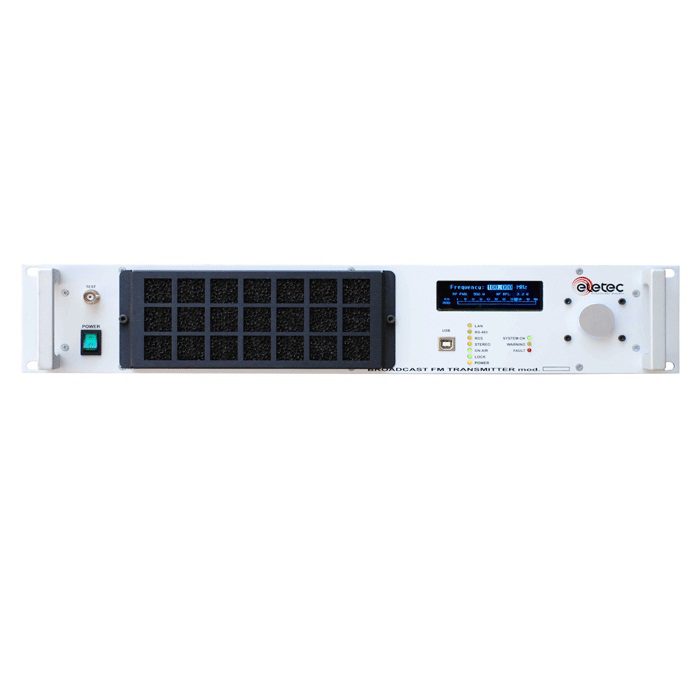

Emetteur FM 600W Digital EL600D
Emetteur FM 600w intégrant les fonctions :
- emetteur fm 600W ajustable de 0 à 600 W depuis le panneau frontal ou à distance
- Qualité audio supérieure
- codeur stéréo
- RDS Encoder
- S/PDIF et AES/EBU pour Audio Digital (opt)
- port Ethernet
- entrée MPX pour un codage stéréo
- Programmation instantané depuis l écran large LCD Facile a utiliser
- Port USB depuis le panneau frontal pour une connecctivité facile PC
- Niveaux audio et niveaux de modulation controllable depuis le panneau frontal ou à distance
- Built in Web server with Alarm monitoring via Email and Ethernet Connection
Emetteur FM Compact 600W
TECHNICAL SPECIFICATIONS
Rated Output Power: 0-600 W continuously variable (ALC)
RF Output Connector: “N” type female
RF Output Impedance: 50 ohm
Frequency Range: 87.5 ÷ 108 MHz
Emission Class: F3E
VCO Tuning: 25 MHz
Frequency Deviation: ±75KHz
Max Frequency Deviation: ± 200KHz
Frequency Stability: ± 2.5 ppm
Synthesizer Step: 10KHz or 100KHz selectable
Spurious Emission: < – 90 dB or better
Harmonic Emission: < – 75 dB
RF Testing Sampler: BNC-F 0dBm
Stereo Separation: > 58 dB @ 1KHz
VSWR: 2:1 AT RATED OUTPUT – DYNAMIC PROTECTION NO-STOP SYSTEM
Distortion THD: < 0.1 % (TYP. 0.05%) @ 1KHz
Distortion IMD: < 0.1 % (TYP. 0.05%)
Base Band: 30 Hz ÷ 60 KHz within 0.15 dB
Unweighted S/N Ratio: > 80 dB (30Hz ÷ 15KHz 50 mS RMS)
Asyncronous AM S/N Ratio: > 60 dB Ref. 100% AM 400Hz
Syncronous AM S/N Ratio: > 55 dB with FM @ 75KHz @400Hz
Pre-Emphasis: 0, 50, 75 μS int. selectable
Rf Output Connector: N-F 50 Ohm
MPX Input Connecor: BNC-F 2 KOhm
Mono/Stereo Input Connector: XLR BALANCED 2kOhm
AES-EBU Connectors: BNC UNB. 75Ohm or XLR BALANCED 110Ohm
AES-EBU Sample Rate: 32,44.1,48,96 KHz SELF SETTING
RS485: N.02 RJ45
Ethernet: N.01 RJ45
Setting Port: FRONT PANEL USB STANDARD B
Audio Level Setting: 0.1 dB Step
Overall Efficiency: > 70% from 50% to rated output power
Power Supply and Consumption: 110 to 230vac 50÷60Hz ~ 430VA
Cooling: Forced air by brushless fan – Noise < 67dB front
Operating Temperature Range 14 to 113 °F (-10 to 45 °C)
Dimensions: (483x88x410mm)
Weight: (11.5kg)
Emetteur FM 600 Watts
Disponible en version 300, 500, 1000 et 1200W
EL1200D – 1200 Watts Emetteur FM Digital
PLL Control, MOS-FET technology, Stereo & RDS, TCP/IP Control AES-EBU Inputs
Garantie constructeur 2 ans
