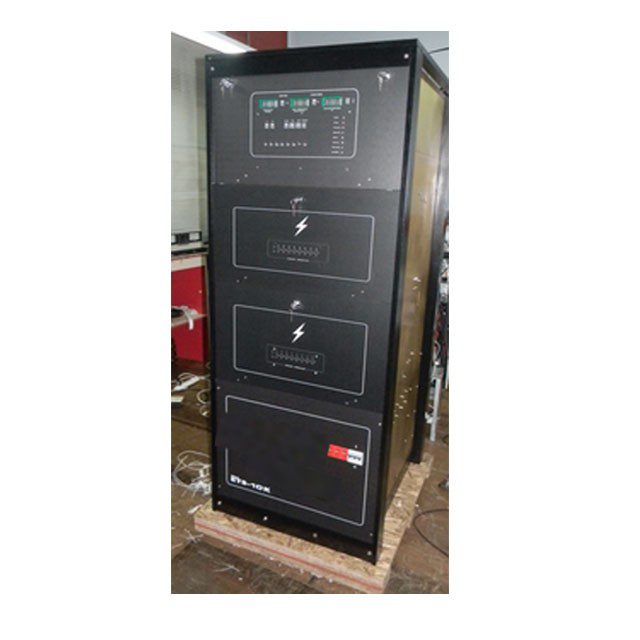

Emetteur AM 10kW
AM Transmitter Solid State 10.000 watts
Compact Cabinet Stainless Steel
100% Solid State MOSFET Tecnology
Modulation PDM
Modular Architecture
Power Modules connected PLUG-IN
16 Modules Power of 1,000 watts each one
100% Solid State MOSFET Tecnology
Modulation PDM
Modular Architecture
Power Modules connected PLUG-IN
16 Modules Power of 1,000 watts each one
Protections of all its parts with Fault Signalling.
A lightning controller output tank, against lightning.
140% of Modulation Capacity in the positive peek.
High efficiency, typically 80% or better.
Excellent Modulation and Low Distortion features.
Power control in 3 levels from the front panel.
Voltage, Current and Power Measurement System , through Digital instruments.
Temperature compensated oscillator.
Automatic replenishment from the studios.
Local and Remote Operating System.
Forced air ventilation system.
Single or Three phase power supply 110/220 vac
Frequency Range any channel within the band of 530 Khz to 1700 Khz
A lightning controller output tank, against lightning.
140% of Modulation Capacity in the positive peek.
High efficiency, typically 80% or better.
Excellent Modulation and Low Distortion features.
Power control in 3 levels from the front panel.
Voltage, Current and Power Measurement System , through Digital instruments.
Temperature compensated oscillator.
Automatic replenishment from the studios.
Local and Remote Operating System.
Forced air ventilation system.
Single or Three phase power supply 110/220 vac
Frequency Range any channel within the band of 530 Khz to 1700 Khz
